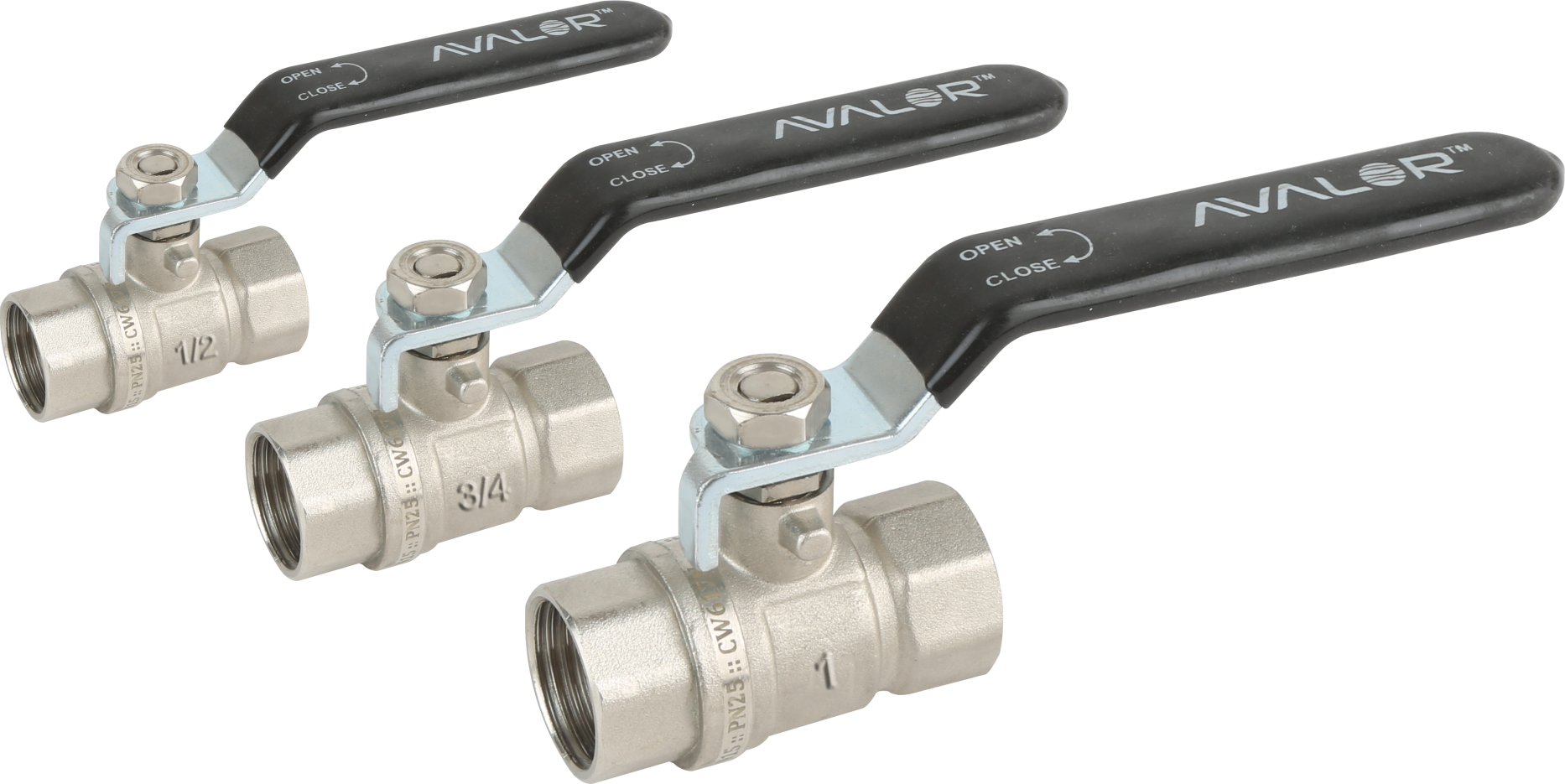

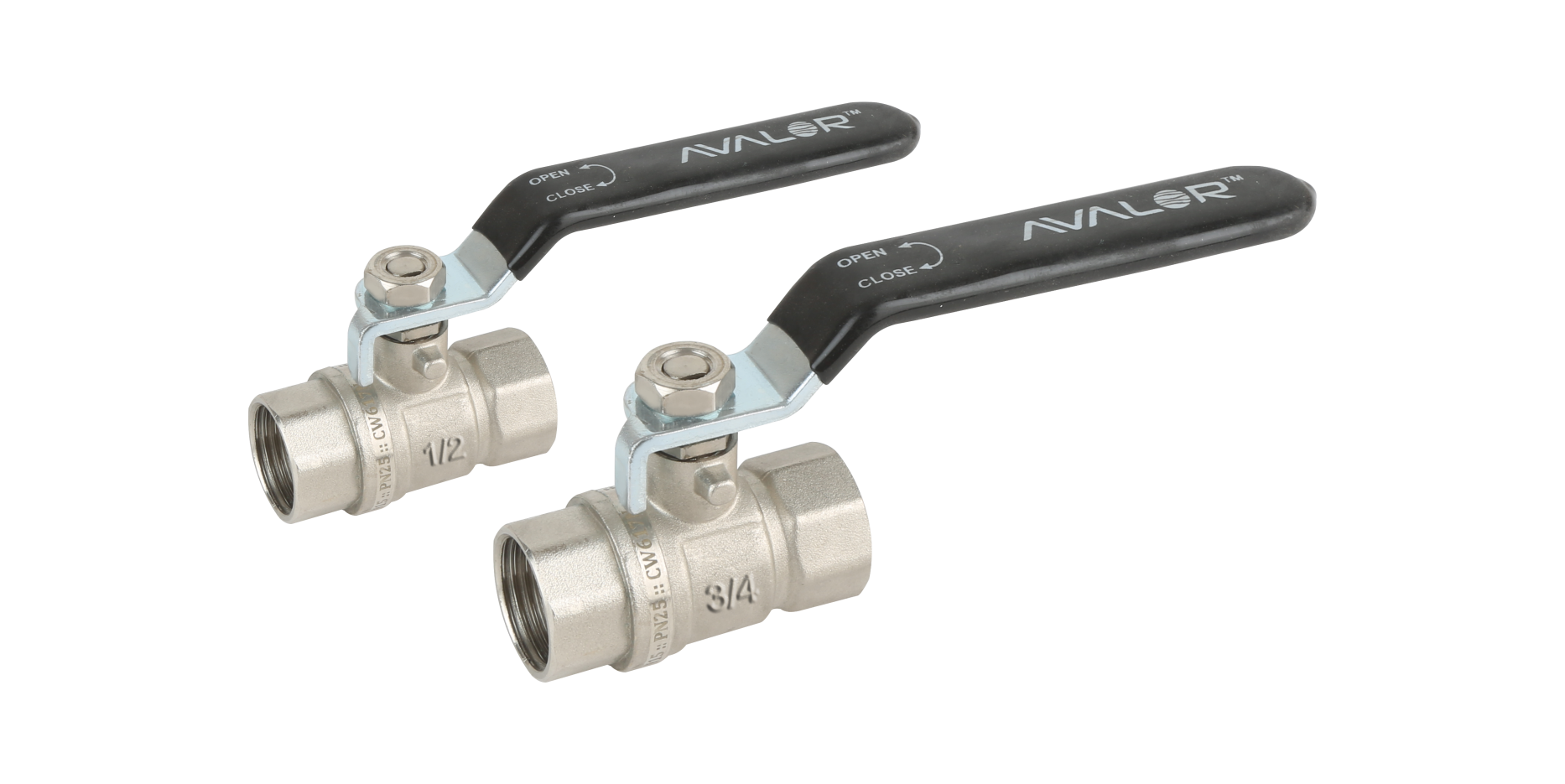

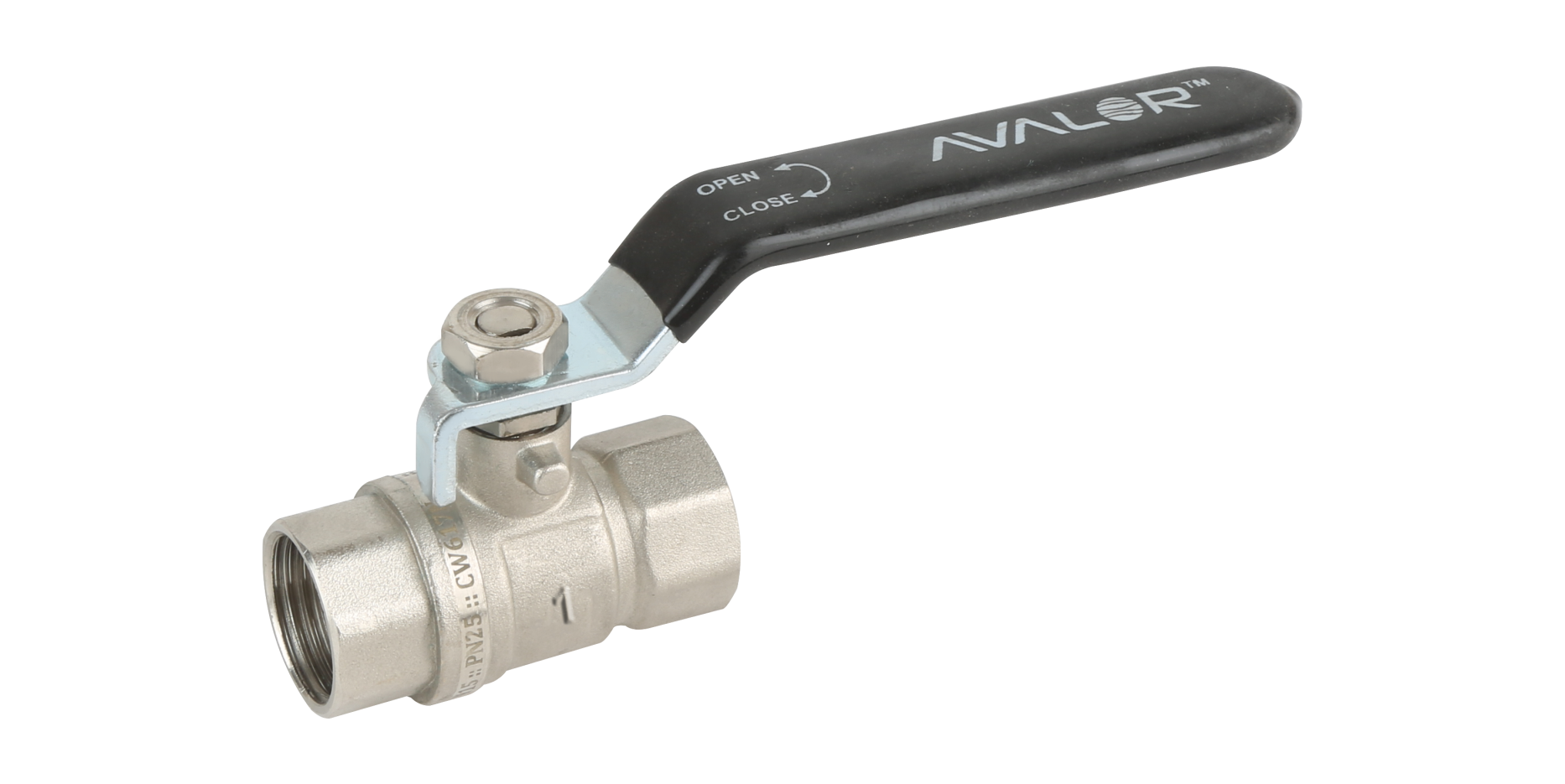

Brass Ball Valve (Light) (MS Handle)

  1. Home  /
  2. Brass Ball Valve (Light) (MS Handle)

Salient Features

  • Screwed Female Ends to IS 554 / BS 21 / ISO 7.
  • Full Bore, Two Piece Design.
  • Quarter Turn, Lever Operated.
  • Provided with Forged Brass Hard Chrome Plated Ball.
  • Premium Quality PTFE Gland Packing and Seating.
  • Chrome Finish.

Test Pressure (Hydrostatic) :

Shell : 25 kg/cm²g (350 psig)

Seat : 16 kg/cm²g (225 psig)

Maximum Working Temperature : 220°C

Steam
Water
Oil
Air
Gases

Materials

P.No. Name of Part Material of Construction Specification Quantity
1 Body Forged Brass IS 6912 Gr. FLB 1
2 Bonnet Forged Brass IS 6912 Gr. FLB 1
3 Ball Forged Brass (Hard Chrome Plated) IS 6912 Gr. FLB 1
4 Body Seat Ring PTFE – – – 2
5 Thrust Washer PTFE – – – 1
6 Gland Packing PTFE – – –
7 Stem Forged Brass IS 6912 Gr. FLB 1
8 Gland Forged Brass – – – 1
9 Lever Aluminium Alloy / Mild Steel – – – 1
10 Nut Brass (Chrome Plated) – – – 1

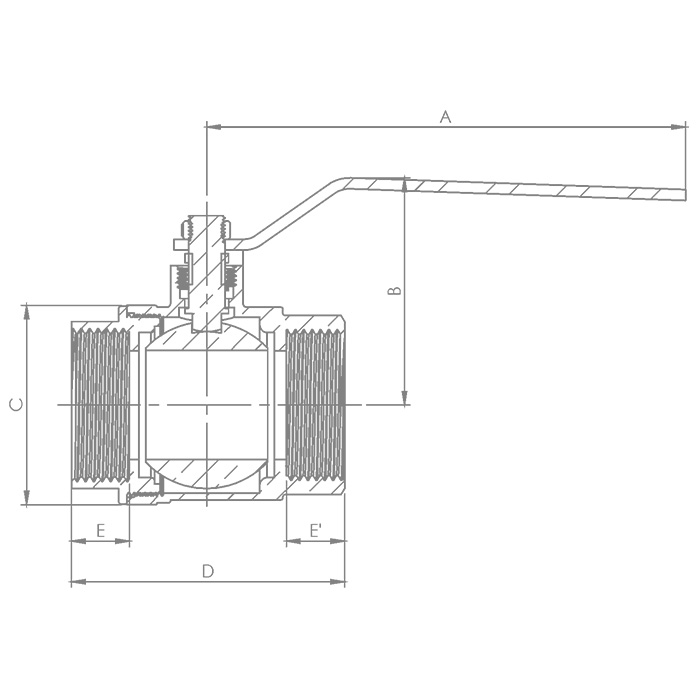

Sizes / Dimensions

Size (Inches) A B C D E & E'
1/2" 1/2" 45.00 27.50 50.25 15.00
3/4" 125.00 47.00 35.00 58.75 14.00
1" 125.00 50.00 41.50 64.25 15.75

At Indian Valve Corporation, we are dedicated in providing our customers with high-quality Brass Ball Valves, Brass Check Valves, Concealed Brass Ball Valves, Mini Brass Ball Valves for a variety of industrial.
