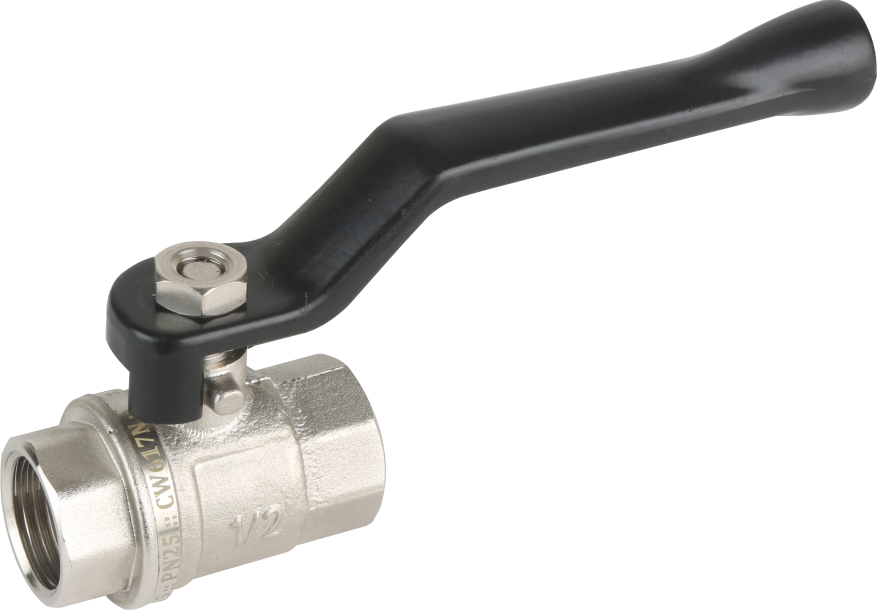

Brass Ball Valve (Heavy) (Aluminium Handle)

  1. Home  /
  2. Brass Ball Valve (Heavy) (Aluminium Handle)

Salient Features

  • Screwed Female Ends to IS 554 / BS 21 / ISO 7.
  • Full Bore, Two Piece Design.
  • Quarter Turn, Lever Operated.
  • Provided with Forged Brass Hard Chrome Plated Ball.
  • Premium Quality PTFE Gland Packing and Seating.
  • Chrome Finish.

Test Pressure (Hydrostatic) :

Shell : 25 kg/cm²g (350 psig)

Seat : 16 kg/cm²g (225 psig)

Maximum Working Temperature : 220°C

Steam
Water
Oil
Air
Gases

Materials

P.No. Name of Part Material of Construction Specification Quantity
1 Body Forged Brass IS 6912 Gr. FLB 1
2 Bonnet Forged Brass IS 6912 Gr. FLB 1
3 Ball Forged Brass (Hard Chrome Plated) IS 6912 Gr. FLB 1
4 Body Seat Ring PTFE – – – 2
5 Thrust Washer PTFE – – – 1
6 Gland Packing PTFE – – –
7 Stem Forged Brass IS 6912 Gr. FLB 1
8 Gland Forged Brass – – – 1
9 Lever Aluminium Alloy / Mild Steel – – – 1
10 Nut Brass (Chrome Plated) – – – 1

Sizes / Dimensions

SIZE A B C D E & E'
1/2" 100.00 43.00 31.50 50.85 14.00
3/4" 125.00 47.00 37.00 57.50 14.00
1" 125.00 52.00 44.35 67.50 15.40
1-1/4" 180.00 73.00 54.75 76.50 16.00
1-1/2" 180.00 76.00 66.50 86.50 18.00
2" 200.00 80.00 82.00 104.00 19.00

At Indian Valve Corporation, we are dedicated in providing our customers with high-quality Brass Ball Valves, Brass Check Valves, Concealed Brass Ball Valves, Mini Brass Ball Valves for a variety of industrial.
